PL-1515 technical specification

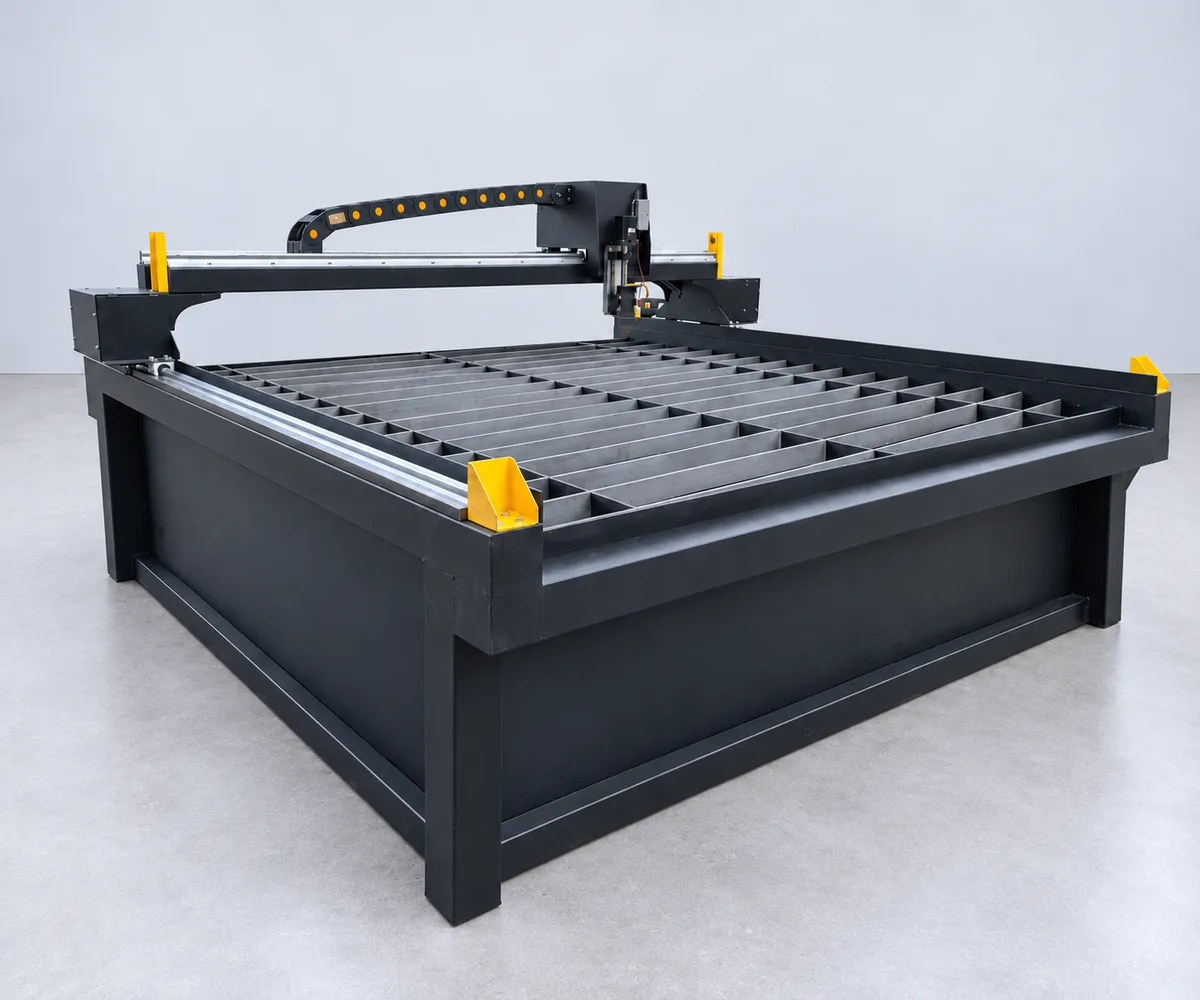

Plasma cutting machine SPR 1500×1500
- Table design
- Welded frame table of increased rigidity
- Working area
- 1600 × 1600 mm, 3-axis control (X, Y, Z)
- Torch positioning accuracy
- 0.1 mm / metre
- Max. cumulative rack error
- 0.1 mm/m
- Process automation
- Automatic torch height control (THC) + automatic plate sensing
- Kinematics
- Backlash compensation. Robust cylindrical guides Ø16 mm
- Motion drives
- Z axis: stepper motor; X1, X2, Y axes: precision closed-loop servo-stepper motors (no lost steps)
- Speed
- Maximum traverse speed up to 25,000 mm/min
- Z-axis travel
- 100 mm
- Fume extraction
- Central extraction (table enclosed with sheet metal; an opening on the short side of the table connects an exhaust fan / extraction blower)
- Cabling
- Heavy-duty shielded cables (protection against high-frequency plasma interference)
- CNC and software
- Fully equipped CNC unit based on an industrial PC. Mach3 and SheetCam pre-installed. Built-in post-processors for Isel, HPGL, Mach2, TurboCNC and WinCNC (reads any vector format)
- Monitor
- 19 inches
- Mains supply
- 220 V supply; CNC system power consumption 1 kW
Plasma cutting power source START CutLine X50 NHF
- Purpose
- Inverter air-plasma cutting source with pneumatic (non-contact) arc ignition (well suited for CNC integration)
- Supply voltage
- 220 V ±15%
- Current adjustment range
- 20–50 A
- Cutting capacity
- – Maximum cut thickness (edge start): 16 mm. – Maximum cut thickness (pierce): 10 mm
- Rated power
- 10 kW
- Duty cycle
- 60%
- Operating temperature
- from −40 °C to +40 °C
- Compressed air requirement
- Air consumption: 280 l/min
Dimensions and equipment
- Machine dimensions
- 1700 × 1700 × 1200 mm
- Machine weight
- 250 kg
- Table
- single-section, with fume extraction

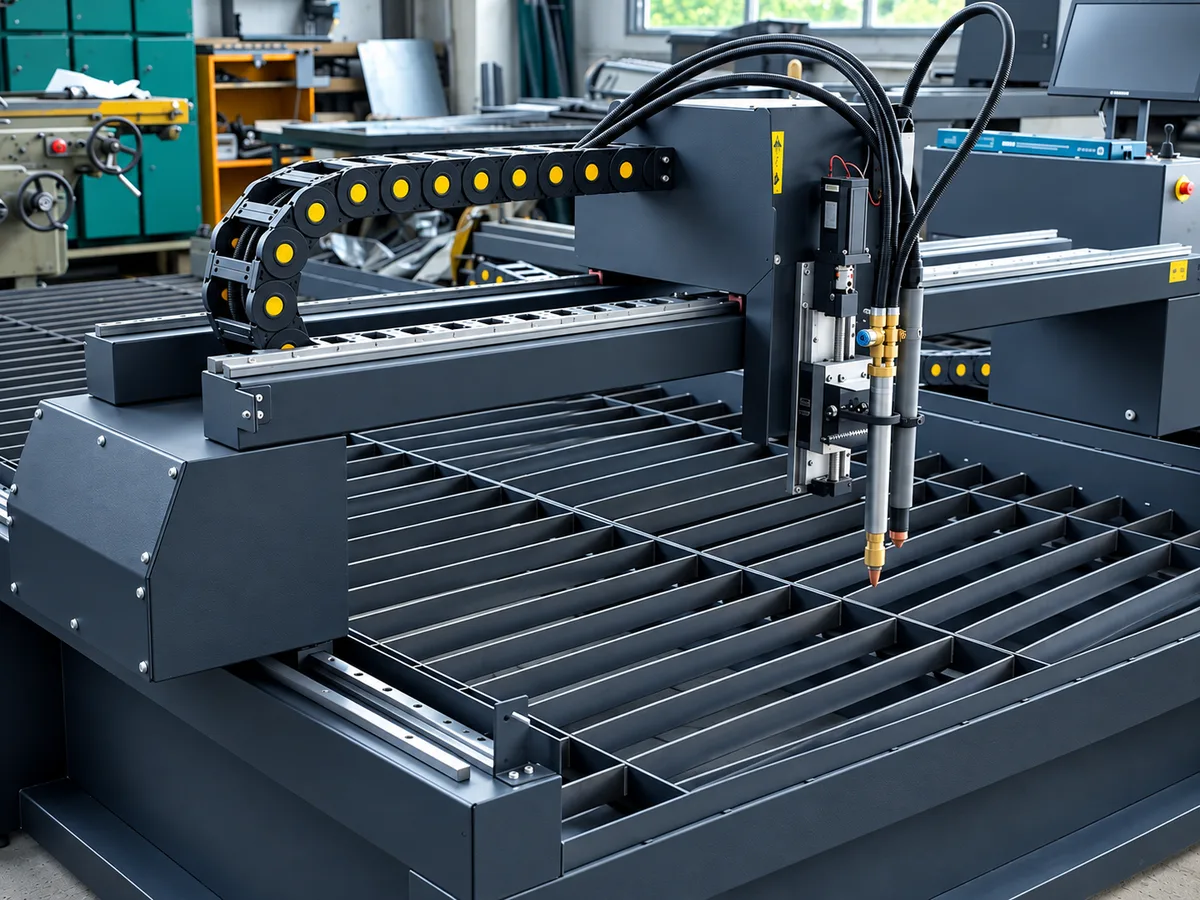

- Gantry
- integrated with the table
- Gas (oxy-fuel) torch
- optional
